Product description

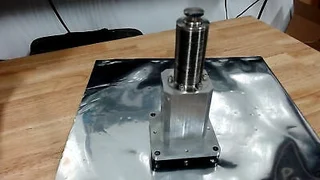

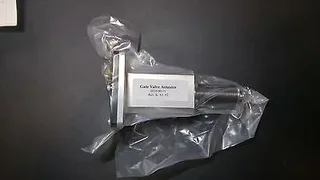

Applied Materials gate valve actuator assembly.
Specifications and identifiers
supported details
| Function | Gate valve actuator Actuates a gate valve used to isolate vacuum/process regions. |
|---|
| Assembly type | Actuator assembly Likely includes mechanical/pneumatic/electrical actuation components. |
|---|
Applications
loadlock isolation valvestransfer chamber valvesvacuum gate valve serviceGate valve actuation replacementVacuum isolation valve repair
How it works
A gate valve actuator assembly used in vacuum, gas, or fluid handling portions of semiconductor equipment.
Vacuum and gas components affect leak integrity, flow control, contamination control, and safe process operation.
Technical guide
metal
Stainless steel or other process-compatible metals may be used when specified; exact material should be verified.
vacuum_gas_handling
Supports controlled flow or sealed connections in tool subsystems.
- Gate valve
- A valve used to isolate vacuum chambers or tool modules.
- NW
- Nominal vacuum flange size used in ISO/KF vacuum hardware.
- SST
- Stainless steel.
- VCR
- A metal-gasket face-seal fitting style common in high-purity gas systems.
What to verify before purchase
- Confirm actuator stroke, mounting, and valve model compatibility.
- Check seals, sensors, and actuator response.
Confirm with the seller
- Exact tool serial compatibility is not confirmed.
- Operating condition and calibration status are not confirmed.
Product reference only. Confirm fitment, revision, included components, and specifications before purchase.
