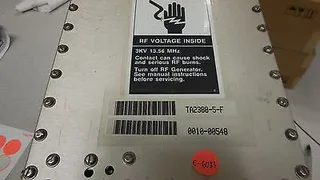

APPLIED MATERIALS 0010-00548

RF Match Assembly

Market Availability & Pricing

Part number0010-00548
ManufacturerAPPLIED MATERIALS
Current availabilitySee listings below
Latest completed listing with reported sales3500 (currency not captured) — public listing price; reported sold quantity is not a verified transaction
Electrical › RF Power › RF Matching Networks
RF Match Assembly
APPLIED MATERIALS0010-00548RF match assembly
Product description
Applied Materials 0010-00548 RF match assembly, described for etch/CVD and Precision 5000 / P5000 contexts.
Specifications and identifiers
identification
DescriptionRF match assembly
Reported contextEtch-OBS, CVD, Precision 5000 / P5000 appear in evidence
FunctionRF impedance matching between generator and plasma load
Equipment context
  • Applied Materials P5000 / Precision 5000
Applications
etch chambersPVD/CVD plasma modulesremote or panel-controlled RF match systemsEtch or CVD RF match replacementP5000/Precision 5000 plasma power serviceRF match troubleshooting
How it works

An RF matching network used between an RF generator and a plasma load.

Proper matching minimizes reflected power and supports stable plasma operation; mismatched parts can damage generators or produce unstable processes.

Technical guide
RF power

radio-frequency power used to sustain plasma

matching network

capacitor/inductor network for impedance matching

What to verify before purchase
  • Verify frequency, power rating, and connector configuration
  • Check tuning capacitor/motor condition
  • Confirm exact chamber and revision compatibility
Confirm with the seller
  • Exact RF rating and chamber model are not confirmed

Product reference only. Confirm fitment, revision, included components, and specifications before purchase.

Documentation

No public documents were listed for this part when captured.

Available Listings

Prices and availability may change. Confirm details with the seller.

No available listings found for this search.

Direct marketplace listings

0 matching listings.

No active-status direct listings are shown on this page.

Marketplace search uses listing titles and service keywords, with quoted phrases and -excluded terms.
