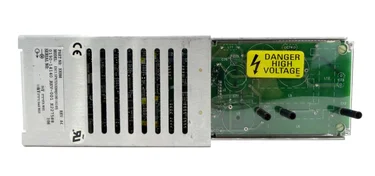

APPLIED MATERIALS 0190-14140

Electrostatic Chuck Power Supply

Market Availability & Pricing

Part number0190-14140
ManufacturerAPPLIED MATERIALS
Current availabilitySee listings below
Latest completed listing with reported sales1400 (currency not captured) — public listing price; reported sold quantity is not a verified transaction
Electrical › Power Supplies › Electrostatic Chuck Power Supplies
Electrostatic Chuck Power Supply
APPLIED MATERIALS0190-14140ESC power supply
Product description
X3286 Electrostatic Chuck Power Supply, bipolar isolated output, 1500 VDC references
Specifications and identifiers
provided listing evidence
FunctionElectrostatic chuck power supply
Repeated titles identify ESC power supply function.
Model/referenceX3286 / ESC1.5PN7.5X3286 appears
Associated model marking should be checked.
Voltage note1500 VDC / 0.75 kV appear in titles
Exact rating conflicts by listing and must be verified on the unit.
Evidence count20 listing title(s)
Number of provided listing-title sources reviewed for this item.
Applications
electrostatic chuck powertool control powerRF/power subsystemsprocess module electronicsESC wafer clamping powerEndura electrostatic chuck power subsystem
How it works

A power supply or power electronics assembly used to provide controlled electrical power to a tool subsystem.

Voltage, current, polarity, isolation, connector, and revision must match the target load to avoid equipment faults or damage.

Technical guide
ESC power supply

High-voltage supply used with an electrostatic chuck to clamp wafers.

bipolar isolated output

A supply configuration that can provide positive and negative output relative to an isolated reference.

ESC
Electrostatic chuck.
VDC
Volts DC.
What to verify before purchase
  • Exact revision and part-number suffix on the physical label
  • Connector, mounting, and interface compatibility with the target tool
  • Condition, completeness, and included cables/modules/sensors
Confirm with the seller
  • OEM datasheet-level specifications unless shown on the item label
  • Guaranteed machine compatibility beyond the listing-title evidence
  • Calibration, operating condition, or service history unless seller documentation provides it

Product reference only. Confirm fitment, revision, included components, and specifications before purchase.

Documentation

No public documents were listed for this part when captured.

Available Listings

Prices and availability may change. Confirm details with the seller.

No available listings found for this search.

Direct marketplace listings

0 matching listings.

No active-status direct listings are shown on this page.

Marketplace search uses listing titles and service keywords, with quoted phrases and -excluded terms.
