APPLIED MATERIALS 3870-01805

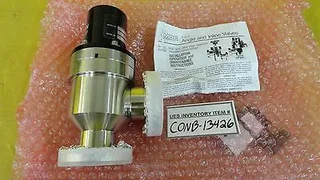

MDC Pneumatic Right-Angle Isolation Valve

Market Availability & Pricing

Part number3870-01805
ManufacturerAPPLIED MATERIALS
Current availabilitySee listings below
Latest completed listing with reported sales202.14 (currency not captured) — public listing price; reported sold quantity is not a verified transaction
Vacuum › Valves & Fittings › Vacuum Valves
MDC Pneumatic Right-Angle Isolation Valve
APPLIED MATERIALS3870-01805pneumatic angle isolation valve
Product description
MDC AV-150M-P-03 pneumatic right-angle isolation valve, 2-3/4 CF and NW40/NW40 style ports, 24 VDC actuator.
Specifications and identifiers
identification
Vendor/modelMDC AV-150M-P-03
Repeatedly associated with the part.
Valve typepneumatic right-angle isolation valve
Used to isolate vacuum flow paths.
Port/actuator details2-3/4 CF, NW40 x NW40, 24 VDC
Verify exact port configuration from nameplate.
Applications
vacuum isolationprocess gas deliverypneumatic controlforeline or chamber flow controlvacuum line isolationforeline or chamber valve servicepneumatically actuated vacuum control
How it works

A valve used to open, close, isolate, throttle, or direct gas, vacuum, or process-fluid flow.

Valve type, actuator style, port standard, seal material, and cleanliness level can determine whether the part is safe and compatible.

Technical guide
NC
Normally closed.
NW/KF
Vacuum flange standards.
VCR
High-purity metal-gasket fitting style.
What to verify before purchase
  • Confirm flange style and port orientation.
  • Verify actuator voltage and solenoid configuration.
  • Check seal condition and whether an ion gauge is included.

Product reference only. Confirm fitment, revision, included components, and specifications before purchase.

Documentation

No public documents were listed for this part when captured.

Available Listings

Prices and availability may change. Confirm details with the seller.

No available listings found for this search.

Direct marketplace listings

0 matching listings.

No active-status direct listings are shown on this page.

Marketplace search uses listing titles and service keywords, with quoted phrases and -excluded terms.
