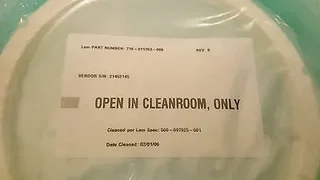

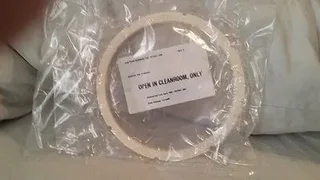

LAM RESEARCH 716-011763-008

8 in wafer-clamp edge ring

Market Availability & Pricing

Part number716-011763-008
ManufacturerLAM RESEARCH
Current availabilitySee listings below
Latest completed listing with reported sales905.21 (currency not captured) — public listing price; reported sold quantity is not a verified transaction
Mechanical › Chamber Components › Edge Rings
8 in wafer-clamp edge ring
LAM RESEARCH716-011763-008edge ring
Product description
Lam Research 716-011763-008 edge ring / wafer clamp edge ring, 8 in / 200 mm, with poly-silicon wording in one source.
Specifications and identifiers
application notes
Use areaWafer clamp / edge ring area
Geometry is critical for wafer edge and clamp fit.
supported details
Item typeWafer clamp edge ring / edge ring
Size8 in / 200 mm
Both equivalent size references appear.
Material wordingPoly SIN / poly-silicon wording
Verify exact material before substitution.
Revision examplesRev 2, Rev B
Revision must be matched when required.
Applications
plasma etch chambersCVD/PVD process chamberselectrostatic chuck assemblieswafer clamp edge ring replacement200 mm chamber hardware serviceplasma-facing ring replacement
How it works

A chamber ring positioned around or near the wafer area to shape plasma behavior and protect nearby chamber hardware.

Focus and edge rings affect plasma uniformity, wafer-edge conditions, and chamber consumable fit.

Technical guide
poly/polycide

Process-specific material wording should be verified against part markings or OEM documentation before substitution.

ESC

Electrostatic chuck; a chuck that holds the wafer by electrostatic force during processing.

What to verify before purchase
  • Exact size
  • Material
  • Revision
  • Whether item is for wafer clamp or edge ring position
Confirm with the seller
  • Specific chamber model
  • Compatibility with 300 mm hardware
  • Condition after cleaning

Product reference only. Confirm fitment, revision, included components, and specifications before purchase.

Documentation

No public documents were listed for this part when captured.

Available Listings

Prices and availability may change. Confirm details with the seller.

No available listings found for this search.

Direct marketplace listings

0 matching listings.

No active-status direct listings are shown on this page.

Marketplace search uses listing titles and service keywords, with quoted phrases and -excluded terms.
