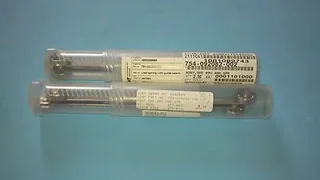

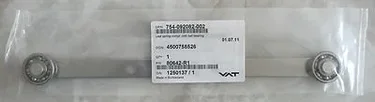

LAM RESEARCH 754-092082-002

Leaf Spring Guide Bearing Assembly

Market Availability & Pricing

Part number754-092082-002
ManufacturerLAM RESEARCH
Current availabilitySee listings below
Latest completed listing with reported sales100 (currency not captured) — public listing price; reported sold quantity is not a verified transaction
Mechanical › Motion Components › Bearings & Springs
Leaf Spring Guide Bearing Assembly
LAM RESEARCH754-092082-002Guide bearing and spring assembly
Product description
Guide bearing and leaf spring assembly, VAT 80642-R1 context, for Lam Research equipment.
Specifications and identifiers
assembly identity
Component typeGuide bearing and leaf spring assembly
VAT reference80642-R1
Arm context10 inch arm
Referenced in some source evidence; verify if applicable to the specific unit.
Applications
Cassette/indexer motionRobot transfer mechanismsValve and arm guide hardwareGuide bearing/spring replacementVacuum valve or arm mechanism service
How it works

A motion assembly uses motors, bearings, springs, or mechanical linkages to move wafers or tool mechanisms.

Motor model, orientation, travel, bearing fit, and mounting geometry determine whether the assembly fits and performs correctly.

Technical guide
guide_bearing

A bearing that constrains or guides moving parts along a path.

stepper_motor

A motor that moves in discrete steps for controlled positioning.

VAT
Vacuum valve/vendor context referenced by the provided evidence.
Vexta
Oriental Motor/Vexta motor brand referenced by the provided evidence.
What to verify before purchase
  • Verify VAT reference, bearing condition, spring form, quantity, and arm/application fit.
  • Confirm whether supplied hardware includes only the bearing/spring or a larger assembly.
Confirm with the seller
  • Exact machine location and quantity per assembly are not confirmed.

Product reference only. Confirm fitment, revision, included components, and specifications before purchase.

Documentation

No public documents were listed for this part when captured.

Available Listings

Prices and availability may change. Confirm details with the seller.

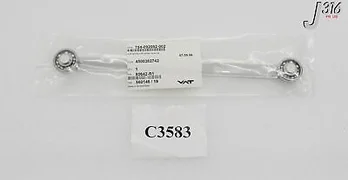

C3583 LAM RESEARCH LEAF SPRING W/ GUIDE BRG, VAT 80642-R1 (NEW) 754-092082-002

C3583 LAM RESEARCH LEAF SPRING W/ GUIDE BRG, VAT 80642-R1 (NEW) 754-092082-002

USD 299.0000

Observed public listing price, not an accepted sale amount.

Observed active at check time
SG
Condition: NEW
Listed: Mar 8, 2024 07:32 UTC
End recorded: Dec 7, 2024 17:04 UTC
Estimated remaining at check: 4
Estimated sold at check: 0

eBay response captured — Checked Oct 5, 2026 16:21 UTC

Availability has not been rechecked; current availability is unknown.

Best Offer · Buy It Now

View on eBay
