| Functional item | ESC filter 5 kV board assembly A high-voltage filtering board associated with electrostatic chuck power hardware. |
|---|---|
| Associated board | ESC 5 kV power supply board reference 810-190402-001 Provided evidence associates this filter board with a related ESC power supply board. |
| Observed revision | Rev. A The provided evidence identifies Rev. A; verify required revision. |
| Voltage class | 5 kV A high-voltage ESC supply/filter context; exact rating should be verified on the board label or drawing. |
|---|
An ESC filter board conditions or filters high-voltage power used by an electrostatic chuck system.
Filtering helps manage electrical noise, ripple, and transient behavior in high-voltage chuck power circuits.
A PCB populated with components designed for high-voltage filtering and insulation clearances.
Tracking, contamination, cracked capacitors, and insulation damage can cause arcing or chuck faults.
High-voltage power used to create electrostatic clamping force between wafer and chuck.
Stable ESC power is important for wafer clamping, thermal contact, and process repeatability.
Filtering circuitry used to reduce noise or transients in high-voltage power lines.
Incorrect filtering can cause electrical faults or unstable chuck behavior.
Product reference only. Confirm fitment, revision, included components, and specifications before purchase.
No public documents were listed for this part when captured.
Prices and availability may change. Confirm details with the seller.
No available listings found for this search.
0 matching listings.
No active-status direct listings are shown on this page.
Auction listing history. Direct marketplace listings are shown separately.
Amounts without an established currency are retained in the history below and excluded from monetary comparisons. Bids, public listing prices and accepted amounts are distinct; no currency conversion is applied.
| Time recorded | Listing | Observation | Public price | Recorded acceptance |
|---|---|---|---|---|

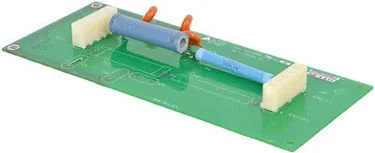

| Dec 27, 2022 12:26 UTC | LAM Research 810-190430-001 Rev.A ESC Filter 5kV Board Assembly | Completed listing price | 62.99 (currency not captured) | Not established |
| Sep 16, 2019 18:26 UTC | LAM Research 810-190430-001 Rev.A ESC Filter 5kV Board Assembly | Completed listing price | 69.99 (currency not captured) | Not established |

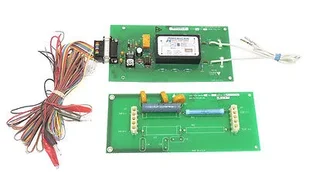

| May 19, 2016 23:52 UTC | Lam Research ESC 5KV Power Supply 810-190402-001 & Filter Board 810-190430-001 | Completed listing price | 399.95 (currency not captured) | Not established |
| Apr 25, 2016 19:54 UTC | Lam Research ESC 5KV Power Supply 810-190402-001 & Filter Board 810-190430-001 | Completed listing price | 399.95 (currency not captured) | Not established |
| Mar 26, 2016 12:02 UTC | Lam Research ESC 5KV Power Supply 810-190402-001 & Filter Board 810-190430-001 | Completed listing price | 399.95 (currency not captured) | Not established |
| Feb 25, 2016 03:50 UTC | Lam Research ESC 5KV Power Supply 810-190402-001 & Filter Board 810-190430-001 | Completed listing price | 399.95 (currency not captured) | Not established |
| Jan 15, 2016 11:08 UTC | Lam Research ESC 5KV Power Supply 810-190402-001 & Filter Board 810-190430-001 | Completed listing price | 399.95 (currency not captured) | Not established |
| Dec 12, 2015 20:31 UTC | Lam Research ESC 5KV Power Supply 810-190402-001 & Filter Board 810-190430-001 | Completed listing price | 399.95 (currency not captured) | Not established |
| Nov 12, 2015 04:06 UTC | Lam Research ESC 5KV Power Supply 810-190402-001 & Filter Board 810-190430-001 | Completed listing price | 399.95 (currency not captured) | Not established |
| Oct 12, 2015 01:43 UTC | Lam Research ESC 5KV Power Supply 810-190402-001 & Filter Board 810-190430-001 | Completed listing price | 399.95 (currency not captured) | Not established |
Public listing prices, direct recorded sale prices and recorded accepted Best Offer amounts remain distinct. Quantities are source estimates. No aggregate sales total or average is inferred.
