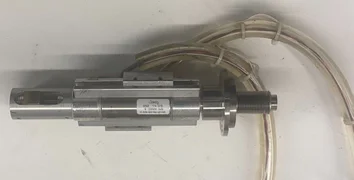

LAM RESEARCH 853-031764-002

Lifter Assembly with Bellows

Market Availability & Pricing

Part number853-031764-002
ManufacturerLAM RESEARCH
Current availabilitySee listings below
Latest completed listing with reported sales600 (currency not captured) — public listing price; reported sold quantity is not a verified transaction. Recorded acceptance: Accepted price not disclosed
Mechanical › Wafer Handling › Lift Assemblies
Lifter Assembly with Bellows
LAM RESEARCH853-031764-002bellows lifter assembly
Product description
Bimba / Lam Research lifter assembly with bellows, 853-031764-002
Specifications and identifiers
observed identity
Component typeLifter assembly with bellows
Repeated in listing evidence.
VendorBimba mentioned
Likely pneumatic component vendor context.
Revision examplesRev B and Rev D mentioned
Revision should be matched.
Applications
Lam Research chamber or wafer handling mechanismspneumatic lifter assembliesvacuum/mechanical motion systemsLift mechanism replacementPneumatic/bellows actuator assembly
How it works

A bellows lifter assembly provides controlled linear movement while maintaining isolation or protection around the moving shaft.

Bellows condition, stroke, seals, and mounting are critical for repeatable lifting and contamination control.

Technical guide
Bellows
Flexible sealed element that accommodates motion.
What to verify before purchase
  • Inspect bellows for cracks/leaks and check stroke smoothness.
  • Confirm Bimba part markings, revision, and mounting.
  • Verify pneumatic fittings and sensor provisions.
Confirm with the seller
  • Exact Lam platform or chamber

Product reference only. Confirm fitment, revision, included components, and specifications before purchase.

Documentation

No public documents were listed for this part when captured.

Available Listings

Prices and availability may change. Confirm details with the seller.

BIMBA Lam Research Lifter Assembly with Bellow 853-031764-002 REV D

BIMBA Lam Research Lifter Assembly with Bellow 853-031764-002 REV D

USD 161.8400

Observed public listing price, not an accepted sale amount.

Observed active at check time
US
Condition: Used
Listed: Nov 18, 2022 22:00 UTC
End recorded: Dec 7, 2024 13:02 UTC
Estimated remaining at check: 1
Estimated sold at check: 0

eBay response captured — Checked Oct 1, 2026 16:01 UTC

Availability has not been rechecked; current availability is unknown.

Best Offer · Buy It Now

View on eBay
Lam Research Lifter Assembly with Bellow 853-031764-002 REV D

Lam Research Lifter Assembly with Bellow 853-031764-002 REV D

USD 571.9900

Observed public listing price, not an accepted sale amount.

Observed active at check time
US
Condition: Used
Listed: Jun 23, 2022 02:32 UTC
End recorded: Dec 7, 2024 14:11 UTC
Estimated remaining at check: 1
Estimated sold at check: 0

eBay response captured — Checked Sep 30, 2026 16:08 UTC

Availability has not been rechecked; current availability is unknown.

Best Offer · Buy It Now

View on eBay
LAM RESEARCH 853-031764-002 REV C

LAM RESEARCH 853-031764-002 REV C

USD 999.00

Observed public listing price, not an accepted sale amount.

Observed active at check time
US
Condition: Used
Listed: Apr 19, 2021 22:14 UTC
End recorded: Dec 6, 2024 17:57 UTC
Estimated remaining at check: 1
Estimated sold at check: 0

eBay response captured — Checked Oct 21, 2026 11:46 UTC

Availability has not been rechecked; current availability is unknown.

Best Offer · Buy It Now

View on eBay

Direct marketplace listings

0 matching listings.

No active-status direct listings are shown on this page.

Marketplace search uses listing titles and service keywords, with quoted phrases and -excluded terms.
